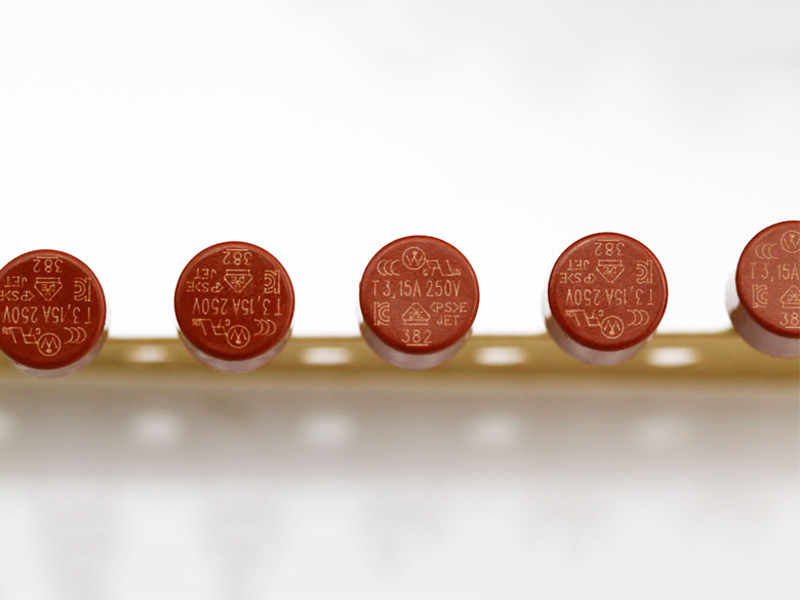

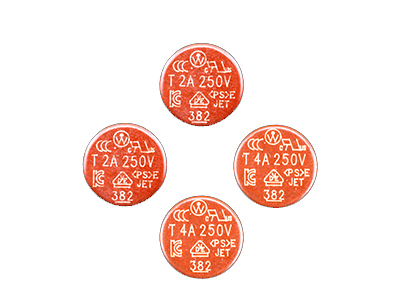

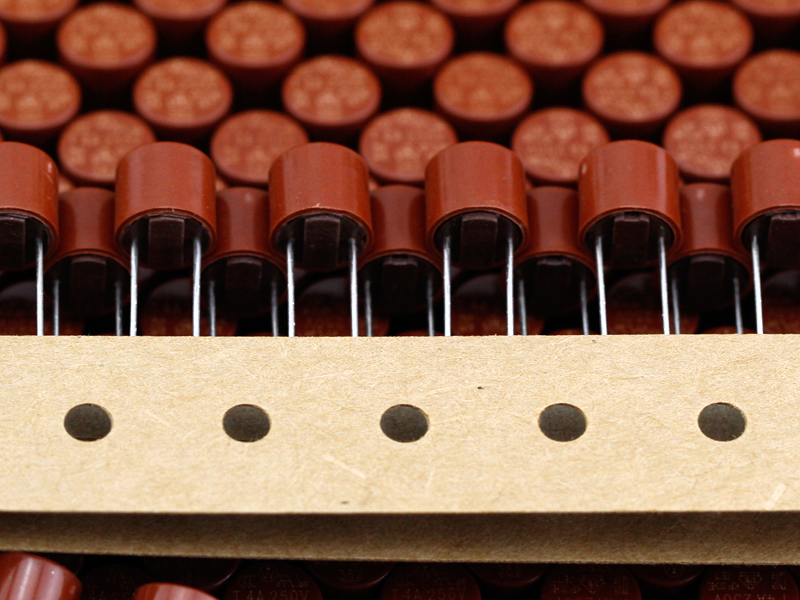

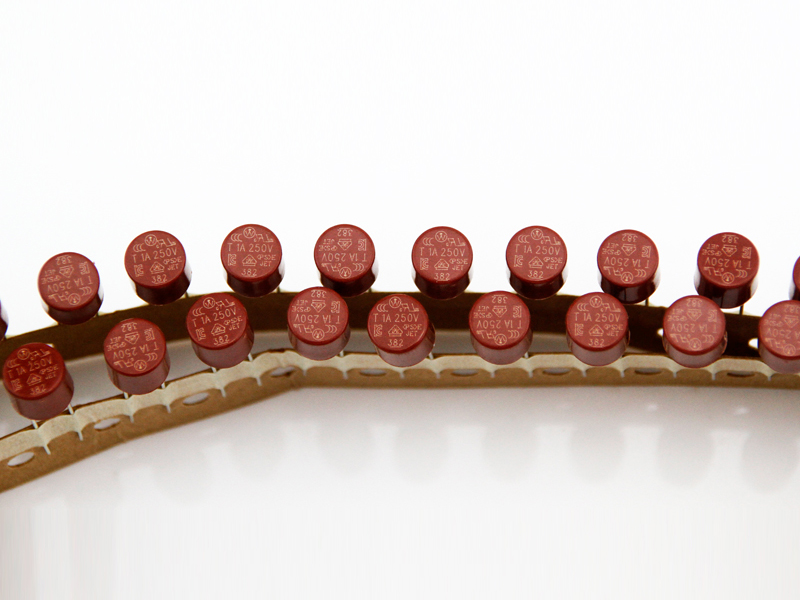

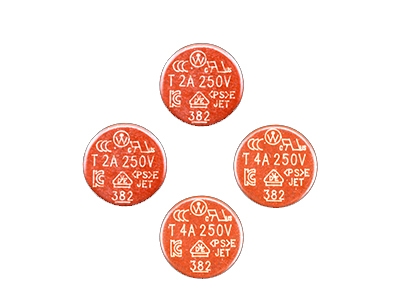

382系列-微型保险丝
快赢v8深圳市集电通实业有限公司是一家专业从事贴片及插件保险丝研发、生产、销售为一体的企业。产品均符合无铅、无卤环保要求，获得UL、VDE、TUV国外权威产品的安规认证
- 品牌： 力特/littelfuse
- 分类： 微型保险丝
- 最大电压： 250V
- 额定电流： 1~10A
Littelfuse_382规格书
Model | Amp Code | Rated Current | Voltage Rating | Bearking Capacity | Nominal Cold Resistance (Ohms) | Voltage Drop 1.0×1N max. (mV) | Power Dissipation 1.5×1Nmax. (mW) | Meiting Integral 10×1Nmin. (A²s) |
3821100 | 1100 | 1.00A | 250V | 100A@250VAC | 0.0625 | 100 | 400 | 4.85 |
3821125 | 1125 | 1.25A | 250V | 0.0500 | 95 | 465 | 6.88 | |
3821160 | 1160 | 1.60A | 250V | 0.0377 | 90 | 490 | 12.67 | |
3821200 | 1200 | 2.00A | 250V | 0.0280 | 85 | 670 | 17.80 | |
3821250 | 1250 | 2.50A | 250V | 0.0215 | 80 | 750 | 29.69 | |
3821315 | 1315 | 3.15A | 250V | 0.0176 | 75 | 900 | 45.35 | |
3821400 | 1400 | 4.00A | 250V | 0.0138 | 70 | 1200 | 72.00 | |
3821500 | 1500 | 5.00A | 250V | 0.0108 | 65 | 1250 | 121.25 | |
3821630 | 1630 | 6.30A | 250V | 0.0076 | 65 | 1400 | 148.84 | |
3821800 | 1800 | 8.00A | 250V | 0.0059 | 63 | 1600 | 233.60 | |
3822100 | 2100 | 10.00A | 250V | 0.0042 | 57 | 1600 | 365.00 |
