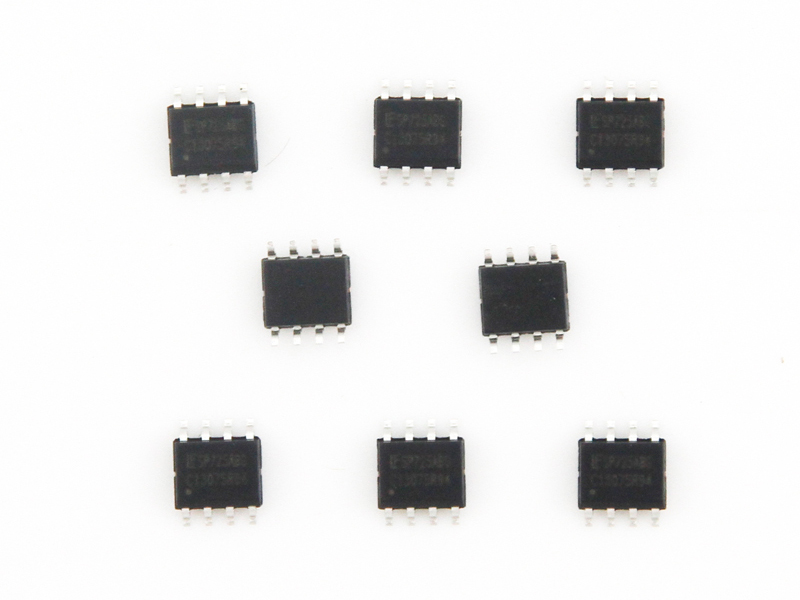

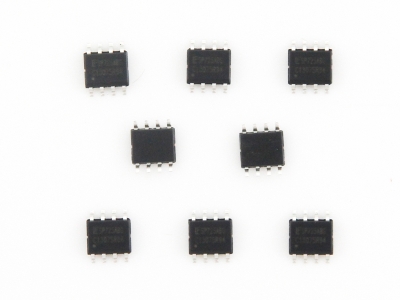

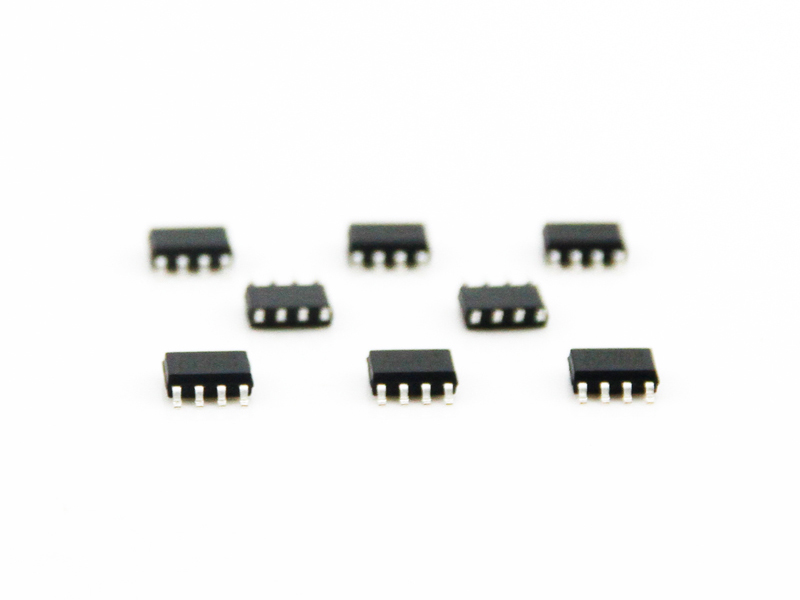

力特SP725系列

SPSP725采用SCR/ ESD二极管两极结构阵列，用于敏感输入电路的ESD和过压保护。 SP725每个输入端都有2个保护SCR/二极管的器件结构。共有4个有效输入端，可保护高达4条外部信号或总线。过压保护范围：从IN（引脚1-4）到V+或V-。

快赢v8SCR结构适用于+VBE二极管阈值超过V+（引脚5,6）或-VBE二极管阈值低于V-（引脚7,8）时需要快速跳闸的场合。如果瞬态脉冲使输入电压升至V+以上的一个VBE，从输入端IN至V+的箝位电压就会被激活。如果低于V-的VBE负脉冲施加至IN输入端时，对V-的类似箝位就会被激活，

品牌：力特/littelfuse
分类：贴片
最大电压： 30V
额定电流： 9A

规格书

详细参数

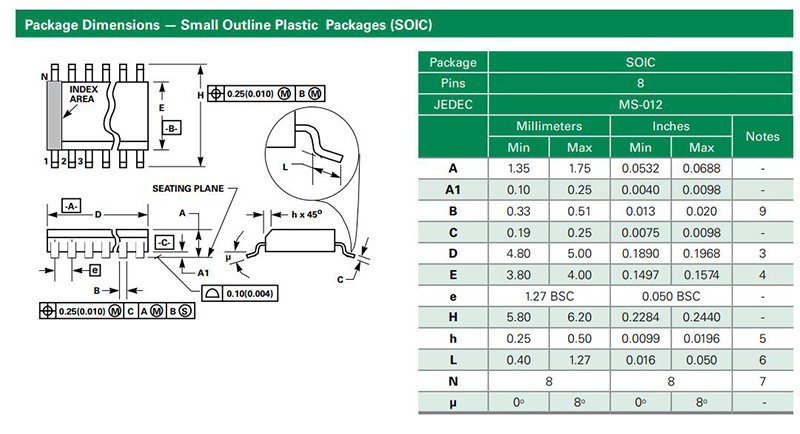

尺寸规格

Littelfuse_SP725规格书

保险丝

Part Number	Temp. Range (ºC)	Package	Marking	Min. Order Qty.
SP725ABG	-40 to 105	8 Ld SOIC	SP725AB(T)G¹	60
SP725ABTG	-40 to 105	8 Ld SOIC Tape and Reel	SP725AB(T)G¹	60

保险丝

标签: Littelfuse力特保险丝力特TVS二极管
